Products

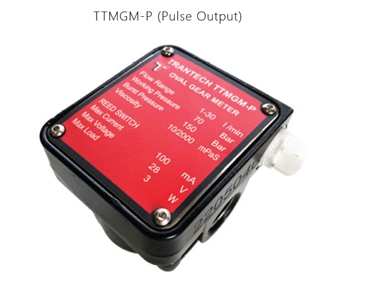

TTMGM-P Trantech oval gear flow meter – Pulse output

Inline Geared flow meter / Totalizer, Flow range : 1-30 L/Min. Pulse output., Suitable for diesel and most clean oils

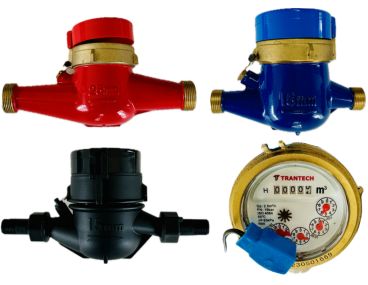

TTMJV Trantech multiJet water flow meter

The Trantech multijet water flow meter offers accurate water measurement using a magnetic Drive, with Lower transmission resistance. Sealed dry register ensures clear reading of water volume. All meters come standard with a pulse output module., Accessories: 2pcs coupling, 2pcs coupling nuts and 2pcs washers.

TTMS Trantech melt pressure sensor for high temperature applications

The Trantech TTMS Melt Pressure Sensor is a high-temperature pressure transmitter specifically designed for measuring the pressure of molten polymers during plastic extrusion, injection moulding and polymer processing. Engineered to withstand high process temperatures while maintaining excellent measurement accuracy, the TTMS provides stable pressure monitoring to improve product quality, protect extrusion equipment and optimise production efficiency

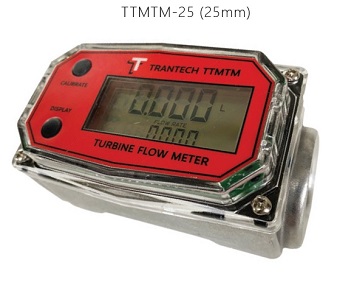

TTMTM Turbine Type Flow Meter

This TTMTM 1 Inch Turbine Flow Meter is a small, reliable and economical digital fuel flow meter, which has an easy to read compact display. It is designed for ease of installation, either inline or at the end of the delivery hose, and it is possible to install the meter directly onto the nozzle.

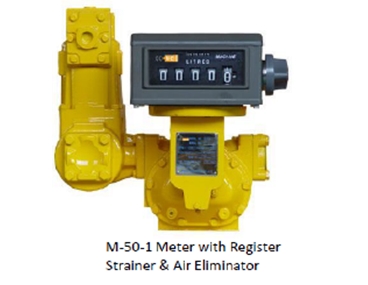

TTPDM Trantech positive displacement meter – LC liquid control flow totalizer.

Excellent stepless adjusting mechanism allows a micro adjustment of the meter., High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow., Low maintenance, no metal-to-metal contact in measuring chamber, long life service.

TTPFS30 Trantech mechanical paddle flow switch

The Trantech TTPFS30 Mechanical Paddle flow switch designed to detect the presence or absence of liquid flow in pipelines. Operating on a simple mechanical paddle principle, the switch is actuated by the movement of liquid against the paddle, providing a dependable SPDT microswitch output for pump protection, equipment interlocking, alarm indication, and process control. The adjustable paddle can be trimmed to suit a wide range of pipe sizes, making the TTPFS30 suitable for water, cooling systems, hydraulic circuits, lubrication systems, and general industrial process applications.

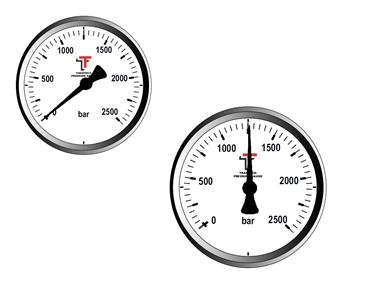

TTPG Trantech bourdon tube pressure gauge

Low cost rugged pressure gauge, Available Range : 100 KPA to 60 MPA, Dial sizes : 40, 50, 63, and 100mm available, Bottom entry or back entry, 304 Stainless steel housing, Optional Stainless steel or Brass internals.

TTPS20 Trantech mechanical adjustable pressure switch

The Trantech TTPS20 Mechanical Adjustable Pressure Switch is a rugged and reliable pressure switch designed for automatic pressure monitoring and control of liquids and gases in industrial applications. Featuring an adjustable pressure set point and adjustable dead band, the TTPS20 provides accurate and dependable switching for pumps, compressors, hydraulic systems, and a wide range of process control applications.With a robust mechanical design, silver-plated SPDT contacts, and an 8.5 A electrical rating. Pressure ranges from 2–30 bar are available, making it suitable for both low and medium-pressure applications.

TTPSD51 Trantech Electronic display differential pressure sensor

The Trantech TTPSD51 differential pressure sensor uses a diffused silicon sensor element to measure accurate differential pressure. The signal is processed by a post-processing circuit and converted into a, standard industrial electrical Milli-amp or Voltage analogue signal. The all-metal casing design, with a bright red LED digital display enables the product line to be used in a variety of industrial applications. The three-button design and menu make the product convenient to use and setup. A variety of process connections are available. The device electronics can rotate up to 330°, this guarantees the best screen viewing angle in different mounting positions.

TTPT Trantech digital display Industrial pressure sensor

Trantech TTPT pressure transmitter with built in digital display.

TTR80N Trantech radar level sensor with display with bluetooth

The Trantech TTR80N 80GHz radar level transmitter is the ideal sensor for non-contact level measurement for liquids and solids. This sensor, offers a robust Aluminum housing with built in digital display and push button programming. The sensor has a stainless steel screw thread with PTFE antenna. Using 80 Ghz FMCW high frequency radar technology this sensor offers great performance and accuracy.

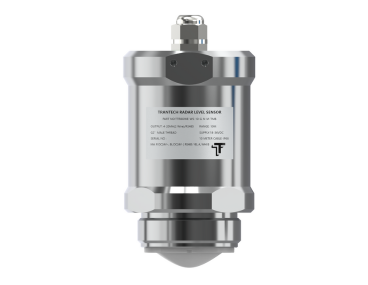

TTR80WE Trantech radar level sensor cable lead with bluetooth

The Trantech TTR80WE 80GHz Radar Level Transmitter is the ideal sensor for non-contact level measurement for liquids and solids. This sensor offers a robust stainless steel housing, IP68 enclosure and uses 80 Ghz FMCW high frequency radar technology offering performance and accuracy. Bluetooth configuration via app.

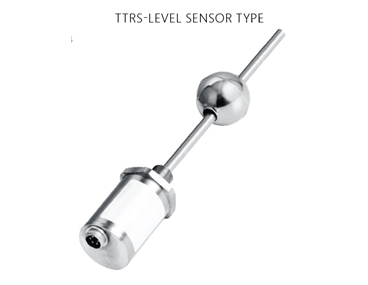

TTRS Trantech Magneto-strictive float type continuous level transmitter

Rugged and reliable, oil fouling resistant. , No zero, absolute displacement output. , Non-contact sensing technology, never worn. , High accuracy, 16 bit D/A for Analog output type, min., 0.5um for SSI output type ., Non-linearity <, ±0.01% of full stroke , Repeatability: <, ±0.001% of full stroke. , Easy to diagnosis, LED lamp real-time display., Modular design, , Replaced by convenience,, Low power design, reduce the heat.

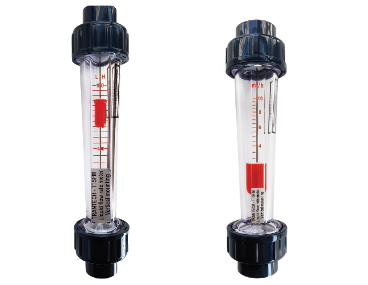

TTSFM Trantech shuttle flow meter – LSZ clear tube rotameter

Trantech plastic tube flow meter , Durable plastic housing , ABS plastic threaded fitting, Vertical mount for display of water flow rate.

TTSST20 / SST20 INCLINOMETERS

SST20 inclinometer based on advanced tilt measurement technology, to meet low cost, high reliability and volume applications. Casting aluminium alloy housing, universal high reliability, M12-5pin industrial connector, IP67 ingress protection., , Applications , Vessels, Engineering machinery, Solar/wind energy, automobile/truck/vehicle, Communication/electric Tower monitoring, High-voltage pylon monitoring, Antenna, construction engineering, Landslide, etc

TTSVW2 Trantech two way general purpose solenoid valve

Direct acting , brass construction , 1/8″ to 2″ line size , 10 bar pressure , AC and DC supply voltage coils available
