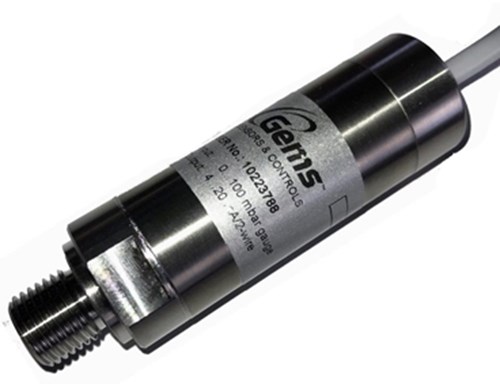

1703 Series – Submersible level sensor, low range

The Gems 1703 low range immersible transmitter is ideal for level measurement in water and fuel oil tanks. Featuring a s/s diaphragm and case the 1703 is immersible to IP68 10m. The unit can be fitted either externally using a G¼ thread or lowered directly into the media and offers a cost effective solution to level measurement in fuel tanks for generators in remote areas or on standby.

1703 Series Gems – Low range level or pressure sensor

The Gems 1703 low range submersible hydrostatic level / pressure sensor is ideal for level measurement in water and fuel oil tanks. Featuring a s/s diaphragm and case the 1703 is immersible to IP68 10m. The unit can be fitted either externally using a G¼ thread or lowered directly into the media and offers a cost effective solution to level measurement in fuel tanks for generators in remote areas or on standby.

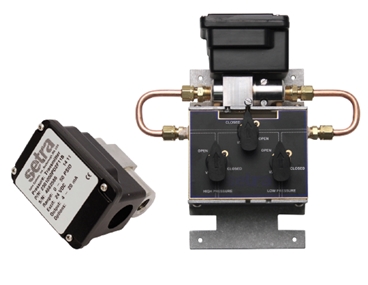

230 Setra wet/wet differential pressure transducer

The 230 Series is designed for wet-to-wet differential pressure measurements of liquids or gases. They feature fast-response capacitance sensors that respond approximately 20x faster than conventional fluid-filled transducers! Sensors are coupled to signal conditioned electronic circuitry for highly accurate, linear analogue output proportional to pressure. Both unidirectional and bidirectional models are available for line pressures up to 250 psi. These units feature bleed ports that allow for total elimination of air in the line and pressure cavities

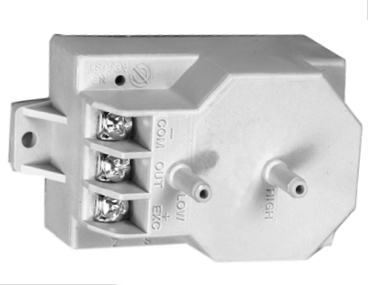

265 Setra Low range differential pressure transducer

The 265 Series are low-pressure transducers for ranges as low 0.25˝ W.C. and feature ±1% full scale static accuracy. Primarily used in Building Energy Management, these transducers are capable of measuring pressures and flows with the accuracy necessary for proper building pressurisation and air flow control. 265 Series transducers utilise an all-stainless steel micro-tig welded sensor that allows up to 10 psi overpressure (in either direction) with no damage to the unit. All sensor components have thermally matched coefficients, which promote improved temperature performance and excellent long-term stability.

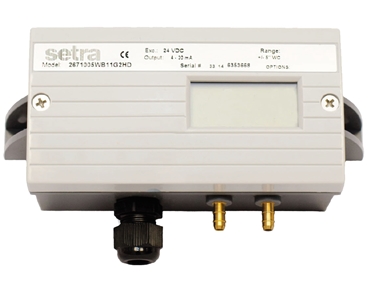

267 Setra Low range differential pressure transducers

The models 267 and 267MR are very low range transmitters for ranges as low as 0.1” WC with high overload capability of up to 700mb in either direction without damage. Both units offer a field configurable high level voltage or 4-20mA current output with the 267 offering the options of a 31/2 digit LCD display and static probe, making it ideal for Building Energy Management Systems with quick and easy installation directly on a duct, as well as a multi-range capability of six selectable ranges via D.I.P. switches., The 267MR has D.I.P. switches which gives a multi range capability allowing up to six selectable ranges.

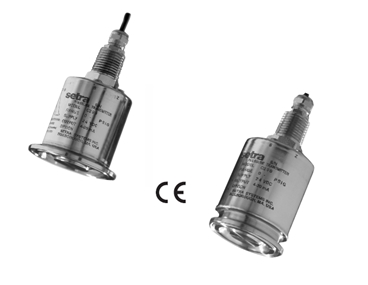

290 Setra flush diaphragm pressure sensor

The Model 290 is Setra’s highest accuracy solution for measuring gauge and compound pressure ranges in sanitary processing applications. Unlike competitive transducers which use an oil filled design, the 316L stainless steel sensor is designed to operate without the need for an intermediary liquid within the sensor. The design of the 290 negates clamp effect making installation and service faster and easier than the competition. Its small footprint and accuracy (±0.2% FS) covers a wide range of pressure ranges that meet both 3A certification and withstand CIP/SIP environmental conditions, making it ideal for a variety of applications.

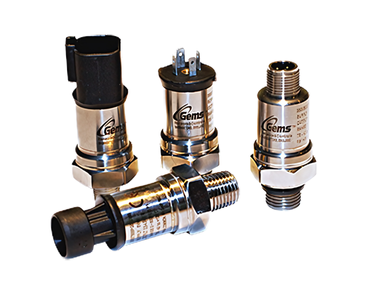

3100 Series Gems pressure sensor

The Gems 3100 Series offers an unbeatable price-to-performance ratio in a compact package. Designed for applications requiring consistent, high levels of performance, reliability, and long-term stability, these sensors deliver exceptional value., Key features include :, – All stainless steel wetted parts for durability and corrosion resistance., – A wide range of pressure and electrical connection options., – Multiple electrical output choices to suit diverse application needs., Manufactured using state-of-the-art automated equipment, the 3100 Series ensures high quality, consistency, and affordability—making it one of the most competitive pressure sensors available today.

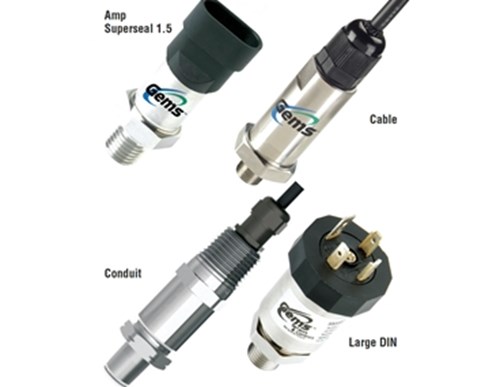

3200 Series Gems Pressure sensor

The Gems 3200 Series transmitters features a thicker diaphragm and a pressure restrictor to withstand the rigors of cavitations or extreme pressure spikes, delivering years of reliable and stable performance in pulsating applications. Designed for applications requiring consistent, high levels of performance, reliability, and long-term stability, these sensors deliver exceptional value. Key features include :, – All stainless steel wetted parts for durability and corrosion resistance., – A wide range of pressure and electrical connection options., – Multiple electrical output choices to suit diverse application needs., Manufactured using state-of-the-art automated equipment, the 3200 series ensures high quality, consistency, and affordability.

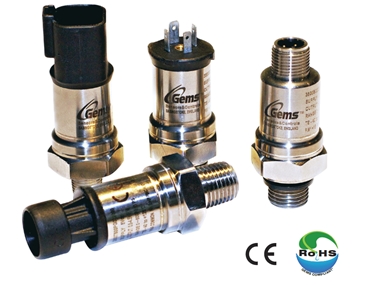

3500 Series Gems pressure sensor

The Gems 3500 Series pressure sensor offers a small package size for applications that need consistent high levels of performance, reliability and stability, with all stainless steel wetted parts at an unbeatable price performance ratio. A wide choice of electrical outputs as well as both electrical and pressure connections means the unit is suitable for most applications without modification. The compact construction of the 3500 Pressure sensor makes it ideal for installation where space is at a premium.

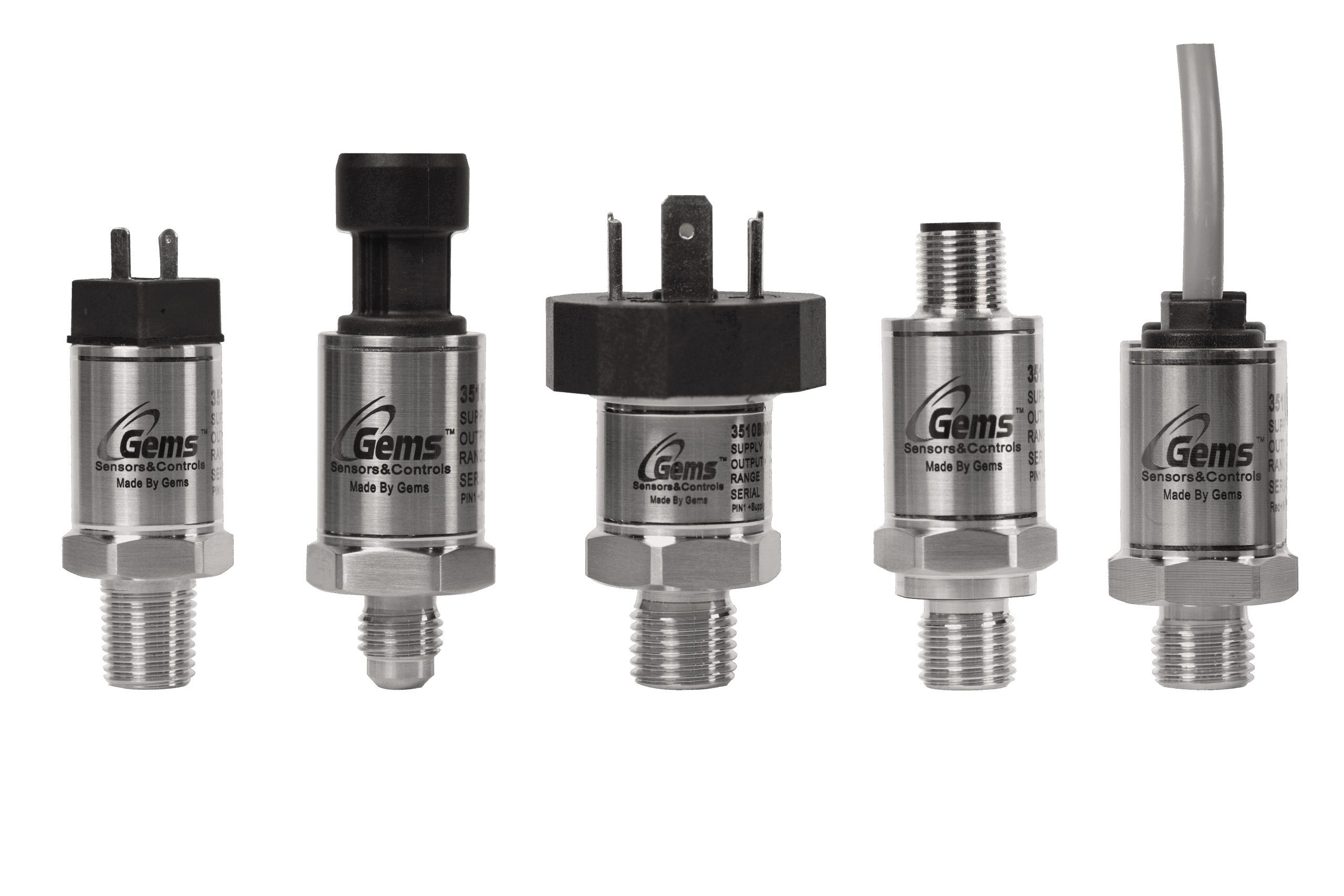

3510 Gems Sensors compact low-pressure OEM pressure sensor

The Gems 3510 Series is a compact, low-pressure OEM pressure transducer designed for industrial and mobile equipment requiring high reliability, fast response, and excellent price-to-performance. It utilizes advanced MEMS (Micro-Machined Silicon) sensing technology combined with 316L stainless steel wetted parts, making it suitable for a wide range of liquid and gas pressure measurement applications. The compact design makes it ideal where installation space is limited.

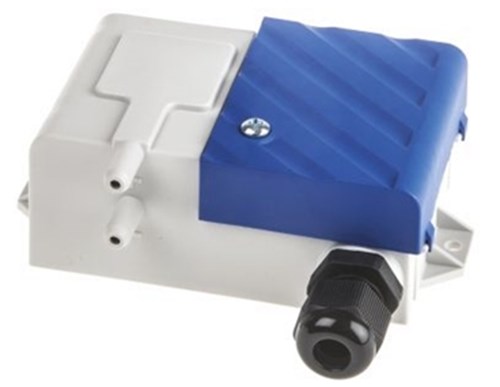

5266 Setra very low range differential pressure transmitter

Gems 5266 low range pressure transmitter measures gauge or differential pressure by means of a stainless steel diaphragm, and capacitive sensor. The model 5266 incorporates an ASIC to provide a temperature compensated high level analogue out put over the temperature range -18 to +65°C. Mounted in a glass filled polyester, case with pipe fittings the 5266 can measure pressures in the range 100 – 5000 pascals., The 5266 utilises an all stainless steel microtig welded sensor. The tensioned stainless steel diaphragm and insulated stainless steel electrode, positioned close the diaphragm, form a variable capacitor. Positive pressure moves the diaphragm toward the electrode, increasing the capacitance. A decrease in pressure moves the diaphragm away from the electrode, decreasing, the capacitance. The change in capacitance is detected and converted to a linear DC electrical signal by Gems’ unique electronic circuit. The micro-tig welded tension sensor allows up to 69kPa overpressure (in either direction) with no damage to the unit. In addition, the sensor parts have thermally matched coefficients, which promote improved temperature performance and excellent long-term stability

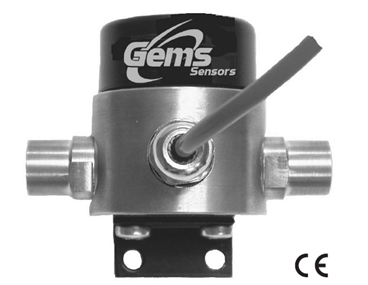

5482 – Wet/Wet Differential Pressure Transducer

This series of miniature differential pressure transducers have a piezo-resistive sensor and a unique conductive seal that eliminates internal wire bonding thus enhancing reliability. Zero and full-scale adjustments are provided under the top cover. They are ideal for use in areas requiring exact pressure measurement, low hysteresis and long-term stability. For all applications where air, oil or water is to be, monitored. The unit is supplied with mounting bracket and integral 1 metre cable

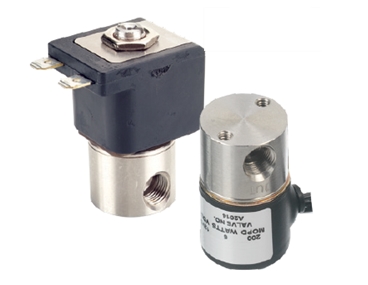

A Series Solenoid Valve – General Purpose Solenoid Valves

The A Series solenoid valve gives you a highly adaptable design for practically all applications requiring flow between CV 0.019 and 0.300. This robust 2- or 3-way miniature solenoid utilizes a stainless steel body to resist corrosion for most acids, alkaline solutions, and harsh environments. Also available in plastic — from polypropylene to Delrin®– when specific inert or demanding requirements are needed. Available in numerous port configurations, orifice sizes, and material combinations, the A series is a highly flexible valve that fulfills the requirements for most applications.

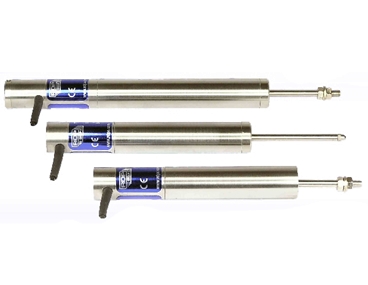

ACT LVDT Displacement Transducer

These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer. This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life., This series of displacement transducer is available as either an unguided, captive or spring return version.

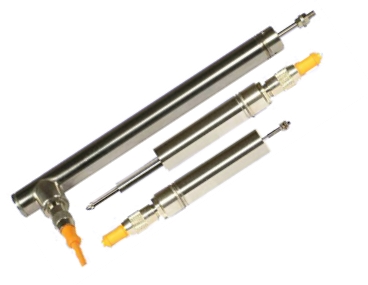

ACW Submersible LVDT Displacement Transducer

These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of , the armature (the sliding part) relative to the body of the displacement transducer., This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life., Our submersible displacement transducers are designed to make measurements whilst submerged in suitable liquids. Fluids which are non-magnetic can be allowed to flood the armature tube without affecting the operation of the transducer.

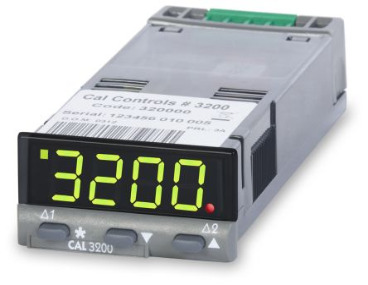

CAL 3200 Simple PID Temperature Controller

The CAL 3200 1/32DIN temperature controller is designed to be easy-to-use and reliable within the most demanding process and manufacturing applications., , Designed for industrial or scientific applications CAL3200 has an impact resistant smoked fascia with large rubberized buttons with positive feedback. PID tuning is simple and efficient whilst the unique dAC function minimizes overshoot
