Products

S7DC In-Line Signal Conditioning Amplifiers

Signal conditioning is required where the output of a transducer needs to be boosted or changed into a form suitable for the monitor or logging device which will be used. These amplifiers are suitable for LVDT transducers, strain gauge sensors and some internally amplified transducers., Our S7 amplifiers are specifically designed to be installed close to the transducer so that the signal can be boosted as soon as possible. The S7 signal conditioning units are mounted in a die-cast aluminum housing and have a good level of environmental protection and screening from electrical noise., A very wide range of gain adjustment ensures that our amplifiers are compatible with the vast majority of LVDT and strain gauge sensors available from any manufacturer., There are several versions with different input, output and transducer compatibility

Series M – Mechanical Tilt Float Switch

Designed for level control and alarm applications in difficult liquids such as sewage and waste water. Series M mechanical tilt floats are ideal for applications where the presence of mercury is a concern. Series M Switches have impact resistant ABS shell and neoprene jacketed cable.

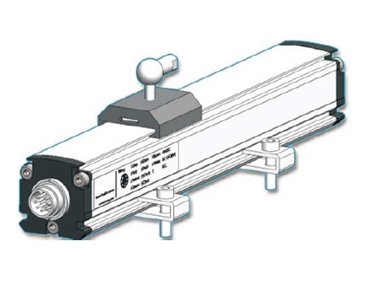

Slider Type Displacement Transducer

External installation, easy to use,, No zero, absolute displacement output, , Non-contact sensing technology, never worn, , High accuracy, 16 bit D/A for Analog output type, , min. 2um for SSI output type,, Non-linearity <±0.01% of full stroke, , Repeatability: <±0.002% of full stroke,, Modular design, replaced by convenience, , Low power design, reduce the heat.

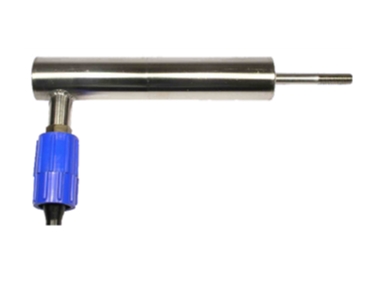

SSA Unamplified Seawater Submersible LVDT Displacement Transducer

This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user , of the sensor means clean data, infinite resolution and a very long life. Our submersible displacement transducers are designed to make measurements whilst submerged in suitable liquids. Fluids which are non-magnetic can be allowed to flood the armature tube without affecting the operation of the transducer., The SS series LVDTs are specially designed for use in sea water and heavy industrial environments with some corrosive chemicals. These LVDTs are made of welded 316 stainless steel and have a through bore plus very heavy construction. Therefore, the SS series LVDTs are capable of withstanding the most arduous industrial applications as well as 10 years seawater submersion at a depth of up to 2,3km

SSD Amplified Seawater Submersible LVDT Displacement Transducer

This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life., Our DC to DC LVDT transducer has all of the benefits of the LVDT sensor principle with the added convenience of built-in LVDT electronics enabling a dc supply and dc output. As an option we can offer a 4-20mA 2 wire connection to the transducer on some models., Our submersible displacement transducers are designed to make measurements whilst submerged in suitable , liquids. Fluids which are non-magnetic can be allowed to flood the armature tube without affecting the operation of the transducer., The SS series LVDTs are specially designed for use in sea water and heavy industrial environments with some corrosive chemicals. These LVDTs are made of welded 316 stainless steel and have a through bore plus very heavy construction. Therefore, the SS series LVDTs are capable of withstanding the most arduous , industrial applications as well as 10 years seawater submersion at a depth of up to 2,3km

Suresite Gems sensors magnetic visual level indicators

The Gems SureSite® is a magnetic visual liquid level indicator that provides continuous, highly visible tank level indication without requiring electrical power. It is designed as a safe, maintenance-free alternative to traditional glass sight gauges, with the process liquid fully contained inside a pressure-tight housing while a magnetic float actuates an external column of coloured indicator flags

Thermocouples and RTD temperature sensors

Transducer Technology manufactures a wide range of temperature sensors. Materials and construction are carefully designed to match the requirements of the various industries., We offer mineral insulated thermocouples and Pt100 sensors manufactured to customers specific requirement.

TRANTECH DIGITAL PROCESS DISPLAY – MODEL TT26D

The Trantech TT26D digital process controller is a, feature rich display which can accept multiple, input types from Analogue mA and voltage signals, for pressure and level control systems to RTD and, thermocouple inputs for temperature control, systems, The TT26D can also be setup for Pulse, input to display total pulses or total flow for flow, measurement applications. The controller offers a, bright 4 digit red LED display with two programmable relays that can be used for pump, control or high / low alarms. In addition, the indicator also features a powered,, programmable 4-20mA retransmission and an on board 24Vdc sensor excitation as standard., The push button display allows for easy on-site customer programming for the relays and the, process value. The 4 digit display can be programmed to display in any engineering unit the, application requires. On-board relays can be set for N/C or N/O operation and also have a, programmable dead band. Additional features include a password lock-out feature to prevent, unauthorised setting changes.

Trantech TTBL borehole level sensor

Trantech TTBL borehole level sensor for accurate borehole level measurement.

Trantech TTVGP Hydrostatic level sensor

TT24 Turbine Type Flow Meter

The Trantech TT24 Flow meter adopts the concept of, modular design, with features of complete function, simple, construction, easy operation. Applications : Diesel , Paraffin , water.

TT26D Trantech digital process indicator

The Trantech TT26D digital process controller is a feature rich display which can accept multiple input types from Analogue mA and voltage signals for pressure and level control systems to RTD and thermocouple inputs for temperature control systems, The TT26D can also be setup for Pulse input to display total pulses or total flow for flow measurement applications. The controller offers a bright 4 digit red LED display with two programmable relays that can be used for pump control or high / low alarms. In addition, the indicator also features a powered, programmable 4-20mA retransmission and an on board 24Vdc sensor excitation as standard., The push button display allows for easy on-site customer programming for the relays and the process value. The 4 digit display can be programmed to display in any engineering unit the, application requires. On-board relays can be set for N/C or N/O operation and also have a programmable dead band. Additional features include a password lock-out feature to prevent unauthorised setting changes.

TT26D Trantech Low cost digital display

The Trantech TT26D digital process controller is a feature rich display which can accept multiple input types from Analogue mA and voltage signals for pressure and level control systems to RTD and thermocouple inputs for temperature control systems, The TT26D is available with a Pulse input version to display total pulses or total flow for flow measurement applications. The controller offers a bright 4 digit red LED display with two programmable relays that can be used for pump, control or high / low alarms. In addition, the indicator also features a powered, programmable 4-20mA retransmission and an on board 24Vdc sensor excitation as standard. The push button display allows for easy on-site customer programming for the relays and the, process value. The 4 digit display can be programmed to display in any engineering unit the application requires. On-board relays can be set for N/C or N/O operation and also have a programmable dead band. Additional features include a password lock-out feature to prevent, unauthorized setting changes.

TT26T non Isolated temperature sensor amplifier

Universal non isolated head transmitter for resistance thermometers (RTD), thermocouples (TC), resistance, voltage transmitter, for installation in a sensor head., Temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analogue output signals.

TT8 trantech ultransonic bulk water meter

The Trantech TT8 Ultrasonic bulk water meter utilises double beam advanced transit time measurement technology to provide, accurate and precise fl ow measurement. It has remarkably low power consumption providing many years of hassle free, operation and wide measuring ranges to record even the lowest of fl ows. The durable all steel enclosure has IP68 protection, providing quality operation in even the harshest of environments. Widely used in urban water supply networks, water resource, management, irrigation, landscape management and industrial automation applications.

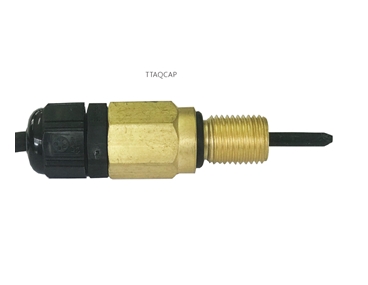

TTAQCAP Trantech Aqua-Sense Water in Fuel Contamination Sensor

Offering unequaled dependability and longevity in a wide range of demanding fluid monitoring applications. The TT Aqua-Sense solid state sensor has no moving parts and is free from maintenance and calibration requirements. The sensor utilizes alternating current, preventing erosion by electrolysis. PTFE insulating sleeve between the probe tip and body prevents build up of contamination. Neoprene H05 RR-F or Hytrel cable for permanent submersion in any hydrocarbon.
