CAP-300 Series – Capacitive Level Sensor

The CAP-300 capacitive level sensor is one of our most durable and reliable point level sensors. The versatile CAP-300 is the ideal OEM solution for power generation equipment, off-highway vehicles, generators, Food & Beverage, Medical, Rail and HVAC applications, , and excels in coolant monitoring. With nearly zero maintenance, the sensor mounts in any position, is compact, tolerates coating, remains reliable even in standby mode, and is compatible with temperatures up to 257°F (125°C). For use where sloshing occurs, or the reservoir’s attitude changes frequently, Gems offers a variety of actuation delays

D Series – High Flow Solenoid Valves

For maximum flow in a miniature solenoid valve the D Series valves delivers a wide range of Cv (Kv) values and maximum operating pressures. The D Series is also available in multiple body materials, seal materials, coil constructions, voltages, and wattages. Proven to perform for millions of cycles without failure, the D valve– as with the entire valve series– is ideal for manifold configurations, sub-assemblies, and complete fluidic systems. The D Series is the largest in a progression–A Series, B Series, and C Series– of the highly flexible, modular design, (general purpose) valves.

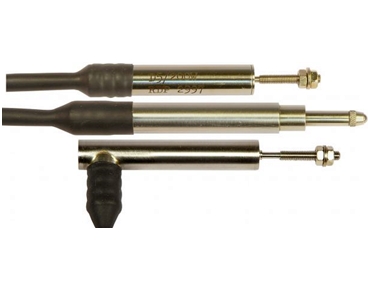

D5 & D6 LVDT Displacement Transducer

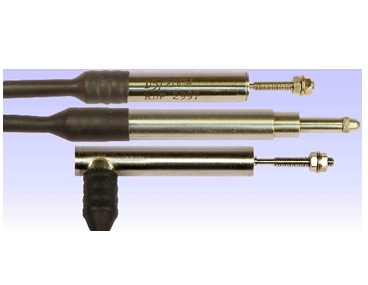

D5W Submersible LVDT Displacement Transducer

These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer., This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life., Our submersible displacement transducers are designed to make measurements whilst submerged in suitable liquids. , Fluids which are non-magnetic can be allowed to flood the armature tube without affecting the operation of the transducer., The LVDTs are available as either unguided or spring return versions.

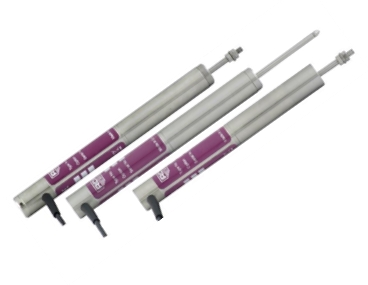

DCC Series 4-20mA 2-wire Output Displacement Transducer

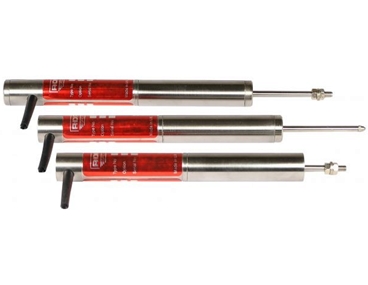

DCTH Series DC to DC LVDT Displacement Transducer

These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer., , This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life., , Our DC to DC LVDT transducer has all of the benefits of the LVDT sensor principle with the added convenience of built-in LVDT electronics enabling a dc supply and dc output. As an option we can offer a 4-20mA 2 wire connection to the transducer on some models.

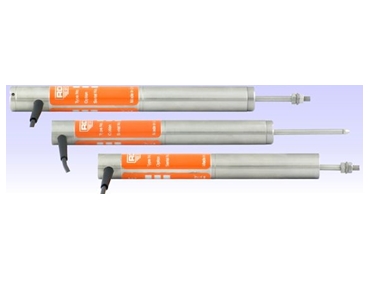

DCV Series Isolated 0 to 10V Output Displacement Transducer

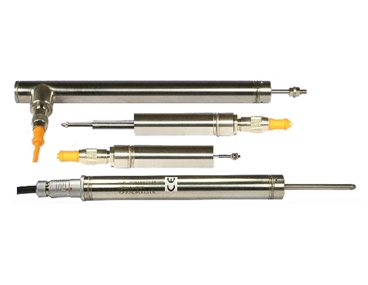

DCW Submersible DC to DC LVDT Displacement Transducer

These transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer., , This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensor’s principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life., , Our DC to DC LVDT transducer has all of the benefits of the LVDT sensor principle with the added convenience of built-in LVDT electronics enabling a dc supply and dc output. As an option we can offer a 4-20mA 2 wire connection to the transducer on some models., , Our submersible displacement transducers are designed to make measurements whilst submerged in suitable liquids. Fluids which are non-magnetic can be allowed to flood the armature tube without affecting the operation of the transducer., , This series of displacement transducer is available as either an unguided, captive or spring return version.

DR7AC DIN Rail Mounting LVDT input amplifier

The DR7 is a DIN rail mounting amplifier designed to install in suitable cabinets along with other similar devices., To reduce electrical noise, system problems and the risk of accidental damage the DR7 has full isolation between supply and output., A wide supply voltage tolerance and selectable excitation ensure that the DR7 is compatible with a very wide selection of transducers and applications.

DR7DC DIN Rail Mounting Amplifiers

DR7DC DIN Rail Mounting millivolt input Amplifier

ELS – 1200 Series

High pressure liquid processes can now be monitored effectively with very little intrusion into tanks or piping. ELS-1200 switches feature fused glass prisms fused to zinc/nickel plated, carbon steel housings. You will find them to be a compact, reliable and durable solution to liquid level monitoring of refrigerant, compressor oil, hydraulic system reservoirs and machine tools.

ELS1100 Series Satisfies Most Applications

These polysulfone units are both compact and economical. They feature a variety of mountings, power requirements and electrical terminations to make it easy to find a perfect match for your application

ELS1100HT High Temperature Level Switch

Slightly larger than the ELS-1100, the “HT” or High Temperature version is made from high performance Isoplast® plastic. While maintaining broad chemical compatibility, these units also handle fluid temperatures to 212°F. They feature 3/8 ̋ NPT mountings , and the shortest of any of our plastic electro-optic switch bodies – HTS versions are a mere 1/2 ̋ long!

ELS1100TFE Teflon ®

When high purity or resistance to chemical attack is vital, ELS-1100TFE sensors are the ultimate solution. They feature a pure Teflon® body and prism construction. Even the Hypalon® vapor barrier and Teflon® coated lead wires give evidence to the care we’ve taken to make this the perfect liquid level sensor for pharmaceuticals, semiconductor manufacturing, food and beverage, chemical processing, or anywhere purity or chemical resistance is the major criteria

ELS1150 Compact Electro Optic Level Switch

The enhanced ELS-1150 series is the highest performing electro optic level switch from Gems Sensors. At just 1.38” long, the ELS-1150 has been upgraded with a micro processor board design to provide a wide range of capabilities including sinking and sourcing and time delay outputs. The strong fused glass prism eliminates leak potential and is capable of handling extreme temperature and pressure applications up to 2500 psi. The ELS-1150 explosion-proof series is available in versions with wide voltage ranges (see ELS-1150XP). Built with solid state reliability, the sensor is available at an affordable price in Nickel-, Plated Carbon Steel or Stainless Steel. The compact size of the sensor makes them ideal candidates for monitoring the small, pressurized vessels found in HVAC, refrigeration and , hydraulic applications in Oil and Gas. The sensors are most commonly used for low, high and intermediate level detection in a variety of media.The stainless steel version (ELS-1150SS) is excellent for application requiring corrosion resistance and is ideal for acids, solvents and dielectric water applications. An explosion proof version, ELS-1150XP, is excellent for applications in Oil & Gas that require small, accurate level sensing of constant media (ie. hydraulic fluid or coolant).
