PRESSURE SWITCH

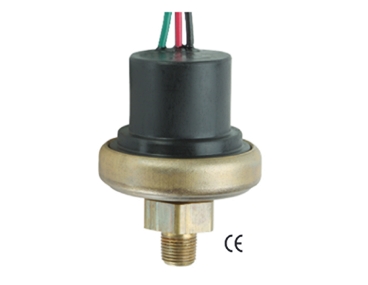

PS11 OEM pressure switch

For low pressure applications, the longevity of our PS11 Series is hard to beat. A life expectancy of 1 million cycles means long-term reliability. Their snap-action microswitch resets automatically and meets or exceeds industry standards. The brass housing offers chemical resistance at an affordable price.

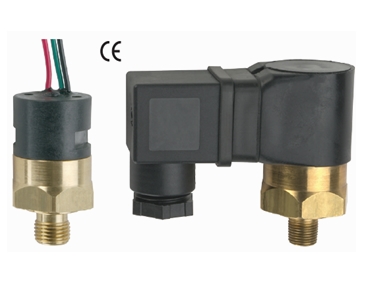

PS41 Gems pressure switch

These miniature pressure switches are designed for demanding applications where space and/or price are strong concerns. The switches utilize a piston/diaphragm design, which incorporates the high proof pressure of piston technology with the sensitivity of diaphragm designs. Switches are field adjustable via an Allen head screw that is hidden to protect against unauthorized tampering., , *CE approval – EN61010:2001 standard

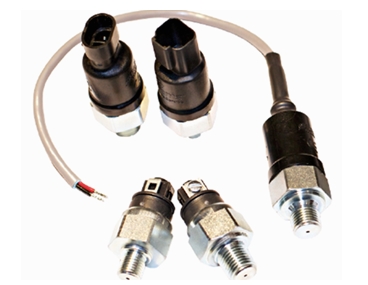

PS61 Gems pressure switch

Gems PS61 series pressure switch is suitable for a wide range of hydraulic and pneumatic applications including medical, general industry and fire systems.

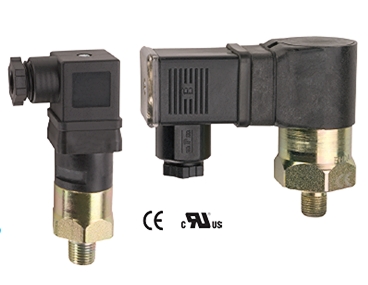

PS71 Series hydraulic / pneumatic pressure switch

These versatile general purpose hydraulic pressure switches and pneumatic pressure switches coupled with our snap action micro switches can be used in a wide range of hydraulic pressure sensor and pneumatic pressure sensor applications. The proven piston/diaphragm design of the hydraulic pressure switch offers outstanding accuracy over a very wide pressure range with an outstanding 6000 psi (414 bar) proof pressure. The hydraulic pressure switch’s modular construction allows Gems™ to offer a large number of standard pressure fittings in two materials as well as numerous electrical ratings and terminations. For lower pressures, our pneumatic pressure switch offers similar features that users can easily configure to meet their needs., , For other applications where analog outputs are required, check our 3100 Series pressure transducer. The 3100 Series pressure transducer has applications as both a hydraulic pressure transducer and a pneumatic pressure transducer. , , *CE approval – EN61010:2001 standard

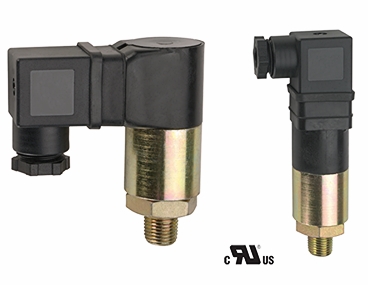

PS75 Rugged sylindrical pressure switch

Gems PS75 Series have all metal surfaces for overload stops and deliver reliable operation under extremely high pressure surges. They are designed with a wear disc and cushioning ring for increased life. The switches use a piston/diaphragm design, which combine the high proof pressure of piston technology with the sensitivity of a diaphragm design. They can be field or factory adjusted.

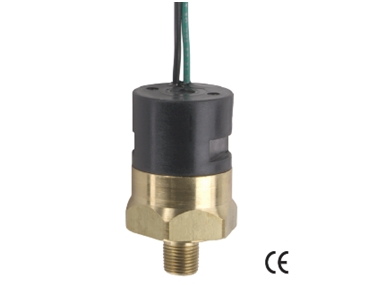

PS82 Economical Vacuum Switch

These miniature vacuum switches, based on our proven PS41 series, are designed for demanding applications where space and/or price are strong concerns

TTPS20 Trantech mechanical adjustable pressure switch

The Trantech TTPS20 Mechanical Adjustable Pressure Switch is a rugged and reliable pressure switch designed for automatic pressure monitoring and control of liquids and gases in industrial applications. Featuring an adjustable pressure set point and adjustable dead band, the TTPS20 provides accurate and dependable switching for pumps, compressors, hydraulic systems, and a wide range of process control applications.With a robust mechanical design, silver-plated SPDT contacts, and an 8.5 A electrical rating. Pressure ranges from 2–30 bar are available, making it suitable for both low and medium-pressure applications.
