LEVEL SWITCH

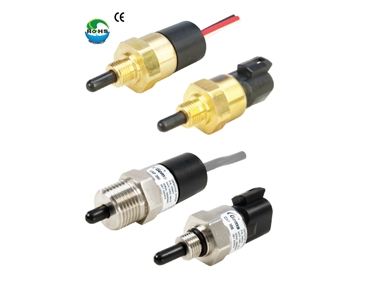

CAP-300 Series – Capacitive Level Sensor

The CAP-300 capacitive level sensor is one of our most durable and reliable point level sensors. The versatile CAP-300 is the ideal OEM solution for power generation equipment, off-highway vehicles, generators, Food & Beverage, Medical, Rail and HVAC applications, , and excels in coolant monitoring. With nearly zero maintenance, the sensor mounts in any position, is compact, tolerates coating, remains reliable even in standby mode, and is compatible with temperatures up to 257°F (125°C). For use where sloshing occurs, or the reservoir’s attitude changes frequently, Gems offers a variety of actuation delays

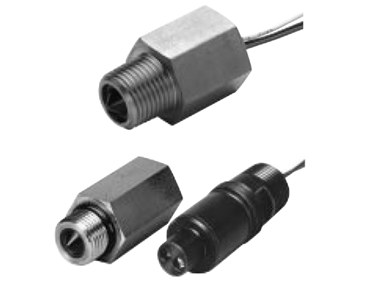

ELS – 1200 Series

High pressure liquid processes can now be monitored effectively with very little intrusion into tanks or piping. ELS-1200 switches feature fused glass prisms fused to zinc/nickel plated, carbon steel housings. You will find them to be a compact, reliable and durable solution to liquid level monitoring of refrigerant, compressor oil, hydraulic system reservoirs and machine tools.

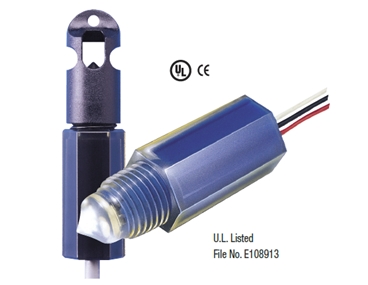

ELS1100 Series Satisfies Most Applications

These polysulfone units are both compact and economical. They feature a variety of mountings, power requirements and electrical terminations to make it easy to find a perfect match for your application

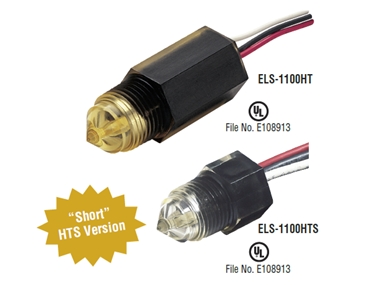

ELS1100HT High Temperature Level Switch

Slightly larger than the ELS-1100, the “HT” or High Temperature version is made from high performance Isoplast® plastic. While maintaining broad chemical compatibility, these units also handle fluid temperatures to 212°F. They feature 3/8 ̋ NPT mountings , and the shortest of any of our plastic electro-optic switch bodies – HTS versions are a mere 1/2 ̋ long!

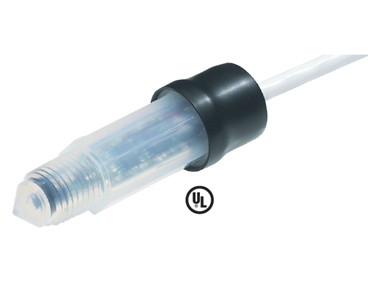

ELS1100TFE Teflon ®

When high purity or resistance to chemical attack is vital, ELS-1100TFE sensors are the ultimate solution. They feature a pure Teflon® body and prism construction. Even the Hypalon® vapor barrier and Teflon® coated lead wires give evidence to the care we’ve taken to make this the perfect liquid level sensor for pharmaceuticals, semiconductor manufacturing, food and beverage, chemical processing, or anywhere purity or chemical resistance is the major criteria

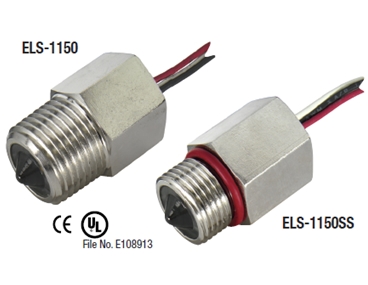

ELS1150 Compact Electro Optic Level Switch

The enhanced ELS-1150 series is the highest performing electro optic level switch from Gems Sensors. At just 1.38” long, the ELS-1150 has been upgraded with a micro processor board design to provide a wide range of capabilities including sinking and sourcing and time delay outputs. The strong fused glass prism eliminates leak potential and is capable of handling extreme temperature and pressure applications up to 2500 psi. The ELS-1150 explosion-proof series is available in versions with wide voltage ranges (see ELS-1150XP). Built with solid state reliability, the sensor is available at an affordable price in Nickel-, Plated Carbon Steel or Stainless Steel. The compact size of the sensor makes them ideal candidates for monitoring the small, pressurized vessels found in HVAC, refrigeration and , hydraulic applications in Oil and Gas. The sensors are most commonly used for low, high and intermediate level detection in a variety of media.The stainless steel version (ELS-1150SS) is excellent for application requiring corrosion resistance and is ideal for acids, solvents and dielectric water applications. An explosion proof version, ELS-1150XP, is excellent for applications in Oil & Gas that require small, accurate level sensing of constant media (ie. hydraulic fluid or coolant).

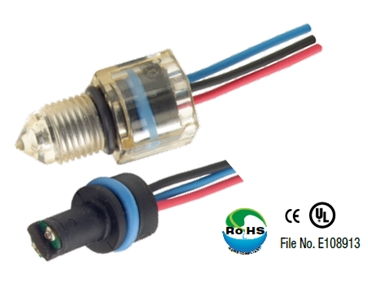

ELS950 – OEM Rugged Electro-Optic Level Sensors

The ELS-950 Series represents Gems’ smallest electro-optic level sensors developed to monitor a broad range of media including OHV type fluids.Our UL-approved design features a TPE over-molded electronics insert, TPE insulated wires, and fluorocarbon o-ring seals that create a watertight, environmentally resistant assembly, ideally suited for use in harsh environments offering excellent temperature and pressure capabilities.The ELS-950 is excellent for industrial OEMs requiring a solid-state sensor for small space and high temperature environments

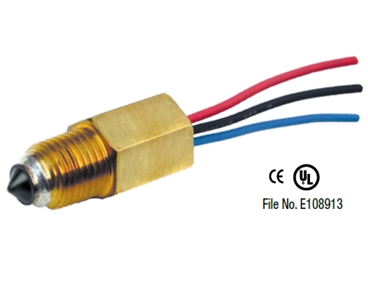

ELS950M Series Rugged Electro-Optic Level Sensors

The ELS-950M Series represents Gems’ most compact alloy-housed electro-optic levelsensors. They monitor a broad range of media including OHV type fluids., Our UL-approved design features a brass housing, fused glass prism, and TPE insulated wires. They provide a durable, watertight, and environmentally resistant assembly, ideally suited for use in harsh environments including outdoors and engine bays. They offer excellent temperature and pressure capabilities. The ELS-950M is excellent for industrial OEMs requiring a solid-state sensor for small space and high temperature environments.

LS1700 Vertical Mount Single Point Level Switch

Ideal for shallow tanks or restricted spaces, or for low-cost, high volume use.

LS1800 / LS1900 Vertical Mounted Single Point Level Switch

Excellent stability for general use in oils and water., Intermediate in size, LS-1800 switches provide long life , and dependability to meet a broad range of requirements.

LS1950E Vertical Mounted Single Point Level Switch

For high performance applications, the LS-1950 provides high temperature and pressure capabilities. Materials of construction comply with FDA food contact regulations.

LS2050E Side Entry, Heavy Duty

Gems level switches can actuate visual or acoustic alarms, control pumps automatically or activate shut down protectors.

LS240 Gems sensors heavy-duty cable-suspended bilge float level switch

The Gems LS-240E (LS-240-3E) is a heavy-duty cable-suspended float level switch designed for bilge water, contaminated liquids, and harsh industrial environments. Its rugged stainless steel construction and protective stilling chamber make it particularly suitable for marine, naval, wastewater, and industrial sump applications, where turbulence, debris, and mechanical shock are common. The LS-240-3E has been approved by Germanischer Lloyd (GL) and the German Navy for demanding marine applications.

LS3 Compact – Economical – Plastic

Ideal for shallow tanks or restricted spaces, or for any low-cost, high volume use. , LS-3 Series are available in FDA compliant materials, , Small yes, but with BIG performance. , No other miniature float switches match our LS-3 specs. These units are ideal for potable water, medical devices and other compact appliances, such as printers. , Gems proprietary float enables use in lighter-than-water fluids. Switches are made from FDA compliant materials.

LS300 – All Plastic Wetted Parts – Smalled Size

Designed for the high quantity needs of the OEM, LS-300 Series , Switches are the ideal level sensor for shallow tanks and reservoirs. , Compact and versatile, these low-cost, plastic level switches offer a , broad choice of mountings and float materials. The following pages , illustrate the various design parameters available to configure custom , LS-300 Series Switches

LS400E – Metal Wetted Parts – Multiple Level Switch

Max. contact loads of the reed switch:, SPST 50 VA; 0.5 A; 250 VAC (NC/NO), SPDT 10VA; 0.3A; 100Vdc
