LEVEL SENSOR

1703 Series – Submersible level sensor, low range

The Gems 1703 low range immersible transmitter is ideal for level measurement in water and fuel oil tanks. Featuring a s/s diaphragm and case the 1703 is immersible to IP68 10m. The unit can be fitted either externally using a G¼ thread or lowered directly into the media and offers a cost effective solution to level measurement in fuel tanks for generators in remote areas or on standby.

PD6000 Precision digital universal process controller

The ProVu meter boasts specifi cations and functionality that, clearly makes it one of the most advanced process meters, available. Its dual-line 6-digit display (999,999), advanced, math functions, function keys, and optional expansion modules, are only a few of the features you will fi nd on the ProVu.

Suresite Gems sensors magnetic visual level indicators

The Gems SureSite® is a magnetic visual liquid level indicator that provides continuous, highly visible tank level indication without requiring electrical power. It is designed as a safe, maintenance-free alternative to traditional glass sight gauges, with the process liquid fully contained inside a pressure-tight housing while a magnetic float actuates an external column of coloured indicator flags

TRANTECH DIGITAL PROCESS DISPLAY – MODEL TT26D

The Trantech TT26D digital process controller is a, feature rich display which can accept multiple, input types from Analogue mA and voltage signals, for pressure and level control systems to RTD and, thermocouple inputs for temperature control, systems, The TT26D can also be setup for Pulse, input to display total pulses or total flow for flow, measurement applications. The controller offers a, bright 4 digit red LED display with two programmable relays that can be used for pump, control or high / low alarms. In addition, the indicator also features a powered,, programmable 4-20mA retransmission and an on board 24Vdc sensor excitation as standard., The push button display allows for easy on-site customer programming for the relays and the, process value. The 4 digit display can be programmed to display in any engineering unit the, application requires. On-board relays can be set for N/C or N/O operation and also have a, programmable dead band. Additional features include a password lock-out feature to prevent, unauthorised setting changes.

Trantech TTBL borehole level sensor

Trantech TTBL borehole level sensor for accurate borehole level measurement.

Trantech TTVGP Hydrostatic level sensor

TTBHLS Trantech borehole level sounder – Dip tape

The Trantech TTBHLS water level sounder provides an accurate method of measuring water level in boreholes and wells. Suitable for observing groundwater levels in hydropower projects or the dam body of earth-rock dams. This instrument can be used both during construction and for long-term safety monitoring of water levels

TTHPLI Trantech high pressure visual level indicator , alloy construction

The Trantech TTHPLI Visual Level Indicator is a simple, reliable and cost-effective solution for direct visual indication of liquid level in atmospheric storage tanks. It provides a continuous visual display of the liquid level using the communicating vessels principle, allowing operators to instantly determine the tank contents without requiring electrical power. The TTHPLI is ideal for water, diesel, oils and other compatible liquids in industrial, agricultural and municipal applications.

TTR80N Trantech radar level sensor with display with bluetooth

The Trantech TTR80N 80GHz radar level transmitter is the ideal sensor for non-contact level measurement for liquids and solids. This sensor, offers a robust Aluminum housing with built in digital display and push button programming. The sensor has a stainless steel screw thread with PTFE antenna. Using 80 Ghz FMCW high frequency radar technology this sensor offers great performance and accuracy.

TTR80WE Trantech radar level sensor cable lead with bluetooth

The Trantech TTR80WE 80GHz Radar Level Transmitter is the ideal sensor for non-contact level measurement for liquids and solids. This sensor offers a robust stainless steel housing, IP68 enclosure and uses 80 Ghz FMCW high frequency radar technology offering performance and accuracy. Bluetooth configuration via app.

TTRS Trantech Magneto-strictive float type continuous level transmitter

Rugged and reliable, oil fouling resistant. , No zero, absolute displacement output. , Non-contact sensing technology, never worn. , High accuracy, 16 bit D/A for Analog output type, min., 0.5um for SSI output type ., Non-linearity <, ±0.01% of full stroke , Repeatability: <, ±0.001% of full stroke. , Easy to diagnosis, LED lamp real-time display., Modular design, , Replaced by convenience,, Low power design, reduce the heat.

TTTL Trantech hydrostatic tank level sensor

Trantech TTTL tank level sensors for JoJo tank, diesel/oil measurements, VSD control, reservoir and dam applications.

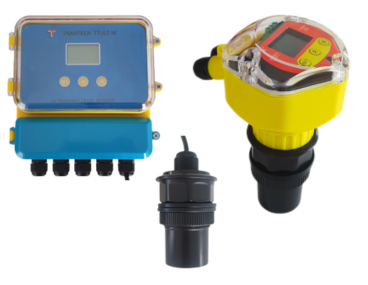

TTULT Trantech ultrasonic level sensor

The Trantech TTULT Ultrasonic level transmitter determines the height from the sensor , to the surface of the liquid by measuring the air propagation time. This product can be used, for a high degree of level measurement and with a variety of liquids and certain solid materials types.
