INDUSTRIAL GANTRIES
Ernest Electro Engineering is a leading provider of a complete range of industrial and commercial utilities that ensure the dependable continuation of all critical operations in your business. Here you will find details about one such focus, our offers on gantries fit for applications across multiple industries and sectors.

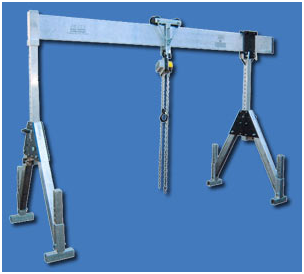

QUICK MOUNTING GANTRY.
Three models available
- MINI – Width of side frames 1,200mm.
Suspension point for lifting gear from 1,180mm to 2,100mm
Lifting capacity 1,500kg
Total Weight 115kg - STANDARD – Width of side frames 1,720mm
Suspension point for lifting gear from 1,680mm to 3,000mm
Lifting capacity 1,500kg
Total Weight 130kg - MAXI – Width of side frames 2,295mm
Suspension point for lifting gear from 2,180mm to 4,000mm
Lifting capacity 1,500kg
Total Weight 146kg
Other versions available such
- Increasing the Safe Work Load to 3,000kg by doubling up any of the models.
- Movable under load Gantry’s available in MINI, STANDARD and MAXI executions.
- Portal side frame Gantry option.
- Wall mount Gantry.
Optional extras
- Electrically driven or manual chain hoists
- Transport carriage
- Undercarriages for moving unloaded Gantry’s
- Handwinch for assembling MINI, STANDARD and MAXI Gantry’s
